Patriot Viper 16GB (2x8GB) DDR4 3600MHz RAM

Patriot Viper 16GB (2x8GB) DDR4 3600MHz 288-Pin DIMM PV416G360C7K

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Each Viper 4 module is manufactured with a pure aluminum heatsink for faster heat dissipation. CL17 Latency Time
Gamer Memory for Desktop Computers 16GB KIT
Memory Size: 16GB DDR4 (2 x 8GB modules)

Patriot Viper 16GB (2x8GB) DDR4 3600MHz image 1

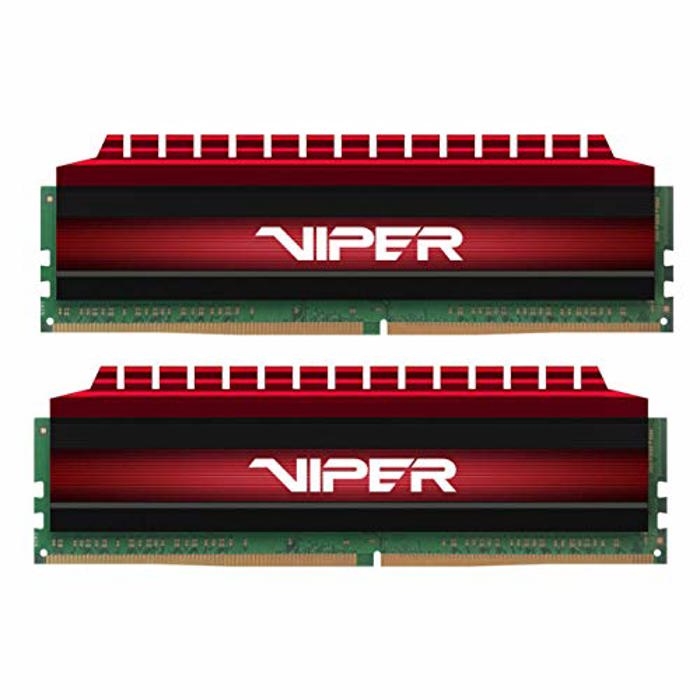

Patriot Viper 16GB (2x8GB) DDR4 3600MHz image 2

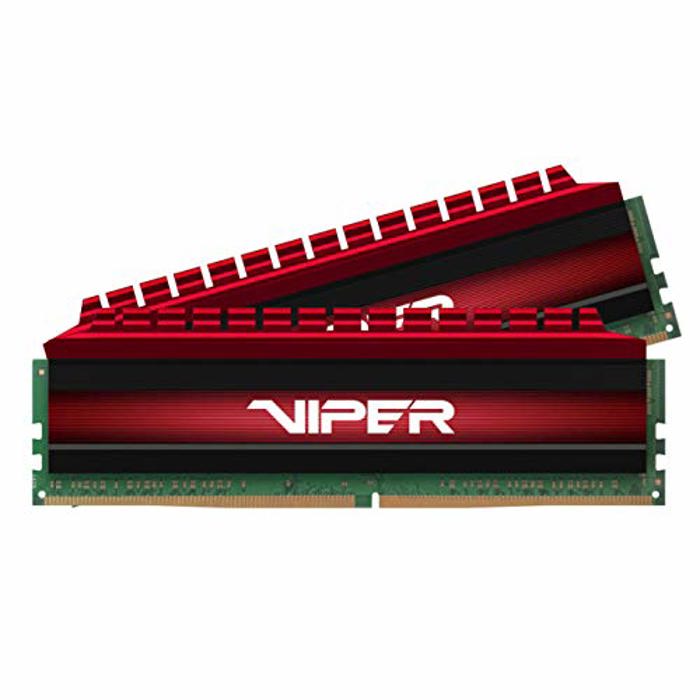

Patriot Viper 16GB (2x8GB) DDR4 3600MHz image 3

Patriot Viper 16GB (2x8GB) DDR4 3600MHz image 4

Specifications Overview

Model	PV416G360C7K
Type	288-pin DDR4 DIMM
Speed	DDR4-3600 MHz
Size	16GB (2 x 8GB)
CAS Latency	17
Timing	17-19-19-39
First Word Latency	9.44 ns
Voltage	1.35 V
Heat Spreader	Yes
ECC Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	2933	3000	3200	3300	3333	3400	3466	3600	3666	3733	3800	3866	4000	4133
15	10.23	10.00	9.38	9.09	9.00	8.82	8.66	8.33	8.18	8.04	7.89	7.76	7.50	7.26
16	10.91	10.67	10.00	9.70	9.60	9.41	9.23	8.89	8.73	8.57	8.42	8.28	8.00	7.74
17	11.59	11.33	10.63	10.30	10.20	10.00	9.81	9.44	9.27	9.11	8.95	8.79	8.50	8.23
18	12.27	12.00	11.25	10.91	10.80	10.59	10.39	10.00	9.82	9.64	9.47	9.31	9.00	8.71
19	12.96	12.67	11.88	11.52	11.40	11.18	10.96	10.56	10.37	10.18	10.00	9.83	9.50	9.19
20	13.64	13.33	12.50	12.12	12.00	11.76	11.54	11.11	10.91	10.72	10.53	10.35	10.00	9.68
21	14.32	14.00	13.13	12.73	12.60	12.35	12.12	11.67	11.46	11.25	11.05	10.86	10.50	10.16
22	15.00	14.67	13.75	13.33	13.20	12.94	12.69	12.22	12.00	11.79	11.58	11.38	11.00	10.65
23	15.68	15.33	14.38	13.94	13.80	13.53	13.27	12.78	12.55	12.32	12.11	11.90	11.50	11.13
24	16.37	16.00	15.00	14.55	14.40	14.12	13.85	13.33	13.09	12.86	12.63	12.42	12.00	11.61
25	17.05	16.67	15.63	15.15	15.00	14.71	14.43	13.89	13.64	13.39	13.16	12.93	12.50	12.10

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
