Phanteks Enthoo Evolv PH-ES215PC_BK Case

Phanteks Enthoo Evolv iTX PH-ES215PC_BK - Black

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Enthoo Evolv ITX includes 1 x 200mm fan in front. Ability to upgrade to additional fans is possible
Appearance: Metal exterior. Clean and Compact design. Clean interior
Extreme cooling capacity. Support for up to 5x 120mm / 5x 140mm / 1x 200mm fans. Comes with 1x PH-F200SP Phanteks premium fan. Extensive water cooling support. Innovative liquid cooling mounting systems: radiator brackets for easy installation
Provides up to 3 different installation areas for slim and thick radiators varying from single to triple (120mm and 140mm form factors). Clearance for push-pull fan configurations.
Removable HDD cage. 28mm cable management space. 1x removable Drop-N-Lock SSD brackets. Fully equipped with dust-filters (1x front, 1x bottom). Bracket for fans/radiator (up to 280mm) installation on top. Hidden PSU cable compartment
Clean cable management using Phanteks' preinstalled Hoop-N-Loop cable ties. 2x USB 3.0, microphone, 3.5mm audio jack, Reset. Multifunctional bracket for easy installation of pump bracket, reservoir bracket, and SSD/HDD brackets

Phanteks Enthoo Evolv PH-ES215PC_BK image 1

Phanteks Enthoo Evolv PH-ES215PC_BK image 2

Phanteks Enthoo Evolv PH-ES215PC_BK image 3

Phanteks Enthoo Evolv PH-ES215PC_BK image 4

Phanteks Enthoo Evolv PH-ES215PC_BK image 5

Phanteks Enthoo Evolv PH-ES215PC_BK image 6

Phanteks Enthoo Evolv PH-ES215PC_BK image 7

Phanteks Enthoo Evolv PH-ES215PC_BK image 8

Phanteks Enthoo Evolv PH-ES215PC_BK image 9

Phanteks Enthoo Evolv PH-ES215PC_BK image 10

Phanteks Enthoo Evolv PH-ES215PC_BK image 11

Phanteks Enthoo Evolv PH-ES215PC_BK image 12

Phanteks Enthoo Evolv PH-ES215PC_BK image 13

Phanteks Enthoo Evolv PH-ES215PC_BK image 14

Phanteks Enthoo Evolv PH-ES215PC_BK image 15

Phanteks Enthoo Evolv PH-ES215PC_BK image 16

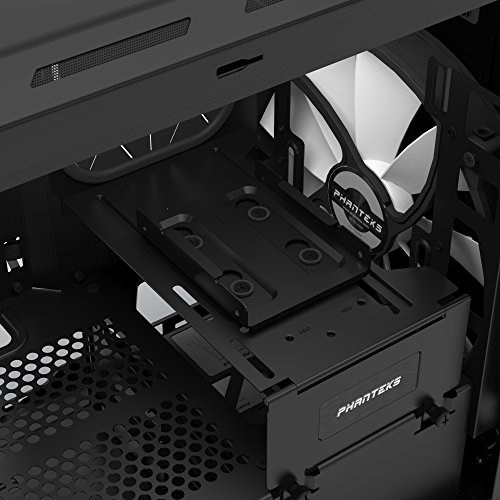

Phanteks Enthoo Evolv PH-ES215PC_BK image 17

Phanteks Enthoo Evolv PH-ES215PC_BK image 18

Specifications Overview

Model	PH-ES215PC_BK
Type	Mini ITX Tower
Color	Black
Includes Power Supply	No
External 5.25" Drive Bays	0
External 3.5" Drive Bays	0
Internal 2.5" Drive Bays	1
Internal 3.5" Drive Bays	2
Motherboard Compatibility	Mini ITX
Front Panel I/O	USB 3.2 Gen 1 Type A
Dimensions	230 mm x 375 mm x 395 mm
Volume	34 L
Max VGA length allowance	330 mm
Expansion Slots	2
Back Connect Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

Expert reviews

100

The one thing I like about this case is that it is not your typical mini-ITX case designed to be super small. We see so many of these and not only do they lack on space, but they are extremely hard to build in. The Enthoo Evolv ITX has enough room...

ThinkComputers

Read the full review

The Evolv ITX SE does exactly what it was advertised to do. There is a lot of flexibility for water and air cooling, but utilizing the front of the case for a radiator with fans or a pump and a reservoir will give access to installing only one storage device. This is because the multifunctional mid-plate and the HDD cage in the power supply hous...

Benchmark Reviews

Read the full review
