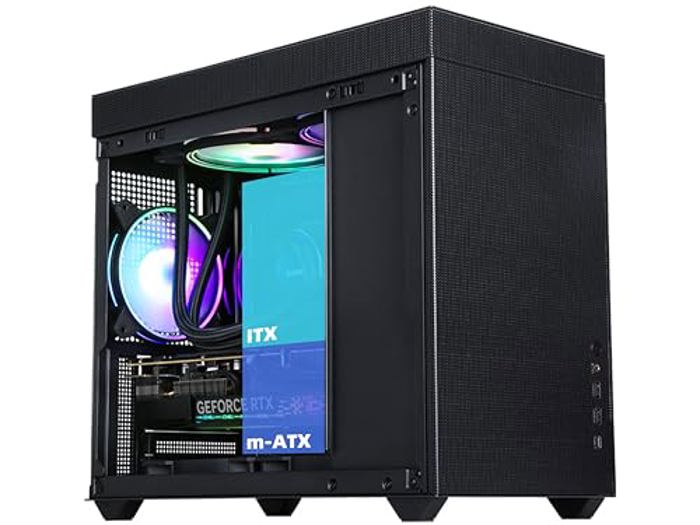

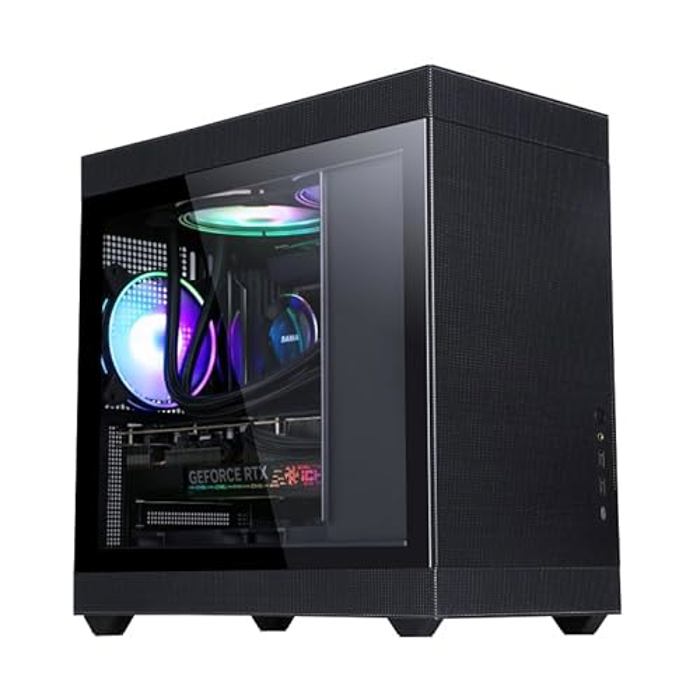

SAMA IM01 Pro BKG Case

SAMA IM01 Pro BKG Black Micro ATX Mini-ITX Mid Tower Steel Metal Panel Tempered Glass 2x USB 3.0 Type C 1x 120mm Silent Fan Pre-Installed

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Metal Mesh Panel ,tempered glass side cover,Micro ATX mid-Tower Computer Case
Supports micro ATX and mini-ITX motherboards, 1 * 120mm silent fan pre-installed
USB3.0*2, HD AUDIO, TYPE C*1
The front panel, top panel, side panel, and bottom plate are all designed with snap fasteners for disassembly and assembly,buckle design
Adjustable PSU location
Max. CPU Cooler: 166mm
Maximum support for 166mm air-cooled and 280mm water-cooled radiators

Specifications Overview

Model	SAMA IM01 Pro BKG IM01 PRO Black
Release Date	August 2023 * First availability for purchase, it may not correspond to the actual market launch date.
Type	MicroATX Mini Tower
Color	Black
Includes Power Supply	No
External 5.25" Drive Bays	0
External 3.5" Drive Bays	0
Internal 2.5" Drive Bays	0
Internal 3.5" Drive Bays	4
Motherboard Compatibility	Micro ATX, Mini ITX
Front Panel I/O	USB 3.2 Gen 1 Type A, USB 3.2 Gen 2 Type C
Dimensions	391 mm x 205 mm x 325 mm
Volume	26 L
Max VGA length allowance	355 mm
Expansion Slots	4
Back Connect Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
