Silicon Power XPOWER Zenith RGB 16GB DDR5 5200MHz White RAM

Silicon Power XPOWER Zenith RGB 16GB DDR5 5200MHz (PC5-41600) CL38 1.25V SP016GXLWU520FSH White

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

【Performance Boost】Premium Zenith Series gaming memory module designed for hardcore gamers and overclockers
【Upgraded Durability】Durable aluminum heatsink provides maximum heat dissipation and thermal management
【Compatibility is Imperative】Ready and certified for Intel XMP 3.0 for ultra-fast one-click overclocking
【Power Efficient】Low voltage of 1.25V-1.35V for less power consumption
【Backed Up Quality】Lifetime limited manufacturer warranty

Silicon Power XPOWER Zenith RGB 16GB DDR5 5200MHz White image 1

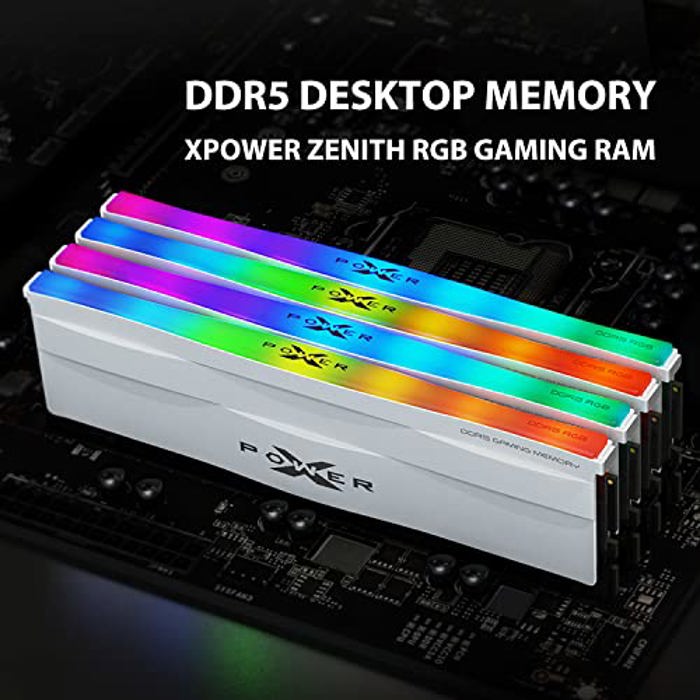

Silicon Power XPOWER Zenith RGB 16GB DDR5 5200MHz White image 2

Silicon Power XPOWER Zenith RGB 16GB DDR5 5200MHz White image 3

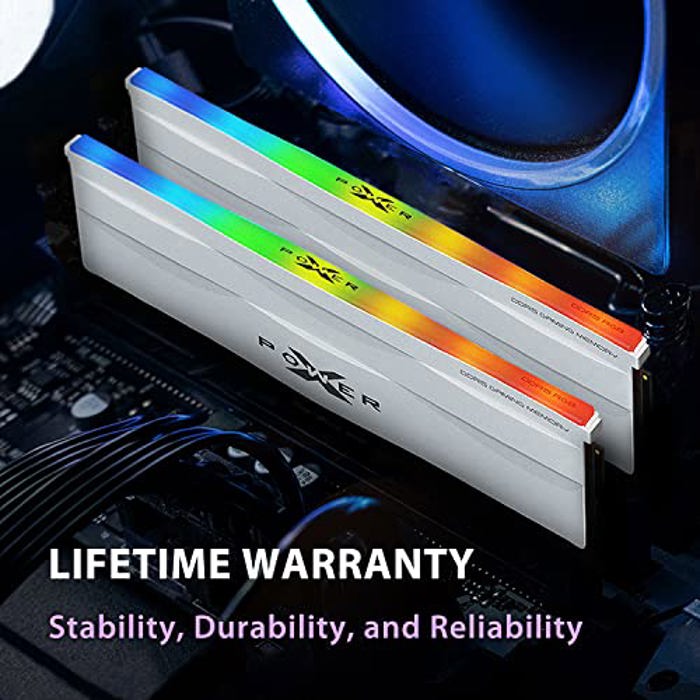

Silicon Power XPOWER Zenith RGB 16GB DDR5 5200MHz White image 4

Silicon Power XPOWER Zenith RGB 16GB DDR5 5200MHz White image 5

Specifications Overview

Model	SP016GXLWU520FSH
Type	288-pin DDR5 DIMM
Speed	DDR5-5200 MHz
Size	16GB (1 x 16GB)
CAS Latency	38
First Word Latency	14.62 ns
Voltage	1.25 V
Heat Spreader	Yes
ECC Support	No
Color	White
LED Color	RGB

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	4400	4800	5000	5200	5600	6000	6200	6400	6600	6800	7000	7200	7400	7600
36	16.36	15.00	14.40	13.85	12.86	12.00	11.61	11.25	10.91	10.59	10.29	10.00	9.73	9.47
37	16.82	15.42	14.80	14.23	13.21	12.33	11.94	11.56	11.21	10.88	10.57	10.28	10.00	9.74
38	17.27	15.83	15.20	14.62	13.57	12.67	12.26	11.88	11.52	11.18	10.86	10.56	10.27	10.00
39	17.73	16.25	15.60	15.00	13.93	13.00	12.58	12.19	11.82	11.47	11.14	10.83	10.54	10.26
40	18.18	16.67	16.00	15.38	14.29	13.33	12.90	12.50	12.12	11.76	11.43	11.11	10.81	10.53
41	18.64	17.08	16.40	15.77	14.64	13.67	13.23	12.81	12.42	12.06	11.71	11.39	11.08	10.79
42	19.09	17.50	16.80	16.15	15.00	14.00	13.55	13.13	12.73	12.35	12.00	11.67	11.35	11.05
43	19.55	17.92	17.20	16.54	15.36	14.33	13.87	13.44	13.03	12.65	12.29	11.94	11.62	11.32
44	20.00	18.33	17.60	16.92	15.71	14.67	14.19	13.75	13.33	12.94	12.57	12.22	11.89	11.58
45	20.45	18.75	18.00	17.31	16.07	15.00	14.52	14.06	13.64	13.24	12.86	12.50	12.16	11.84
46	20.91	19.17	18.40	17.69	16.43	15.33	14.84	14.38	13.94	13.53	13.14	12.78	12.43	12.11
47	21.36	19.58	18.80	18.08	16.79	15.67	15.16	14.69	14.24	13.82	13.43	13.06	12.70	12.37
48	21.82	20.00	19.20	18.46	17.14	16.00	15.48	15.00	14.55	14.12	13.71	13.33	12.97	12.63
49	22.27	20.42	19.60	18.85	17.50	16.33	15.81	15.31	14.85	14.41	14.00	13.61	13.24	12.89
50	22.73	20.83	20.00	19.23	17.86	16.67	16.13	15.63	15.15	14.71	14.29	13.89	13.51	13.16
51	23.18	21.25	20.40	19.62	18.21	17.00	16.45	15.94	15.45	15.00	14.57	14.17	13.78	13.42
52	23.64	21.67	20.80	20.00	18.57	17.33	16.77	16.25	15.76	15.29	14.86	14.44	14.05	13.68

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
