TEAMGROUP Elite Plus 64GB (2x32GB) DDR5 4800MHz CL40 RAM

TEAMGROUP Elite Plus 64GB (2x32GB) DDR5 4800MHz PC5-38400 CL40 (Black) - TPBD564G4800HC40DC01

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$147.99 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (9)

	16GB 4800MHz CL40-40-40-77 Silver $39.99
	16GB Kit (2x8GB) 4800MHz CL40-40-40-77 Silver $86.99
	16GB 6000MHz CL48-48-48-96 Black $59.99
	8GB 4800MHz CL40-40-40-77 Black $19.99
	32GB 4800MHz CL40-40-40-77 Black $69.99
	16GB 4800MHz CL40-40-40-77 Black $39.99
	64GB Kit (2x32GB) 4800MHz CL40-40-40-77 Silver $147.99
	16GB 5600MHz CL46-46-46-90 Silver $45.99
	16GB 5600MHz CL46-46-46-90 Black $45.99

Compatible with DDR5 platforms of Intel and AMD systems.
Effective power system configuration with low voltage for power reduction.
Optimized structure with exceptional access efficiency.
On-Die ECC mechanism for enhanced data transmission stability.
Lifetime warranty and Free technical support.

TEAMGROUP Elite Plus 64GB (2x32GB) DDR5 4800MHz CL40 image 1

TEAMGROUP Elite Plus 64GB (2x32GB) DDR5 4800MHz CL40 image 2

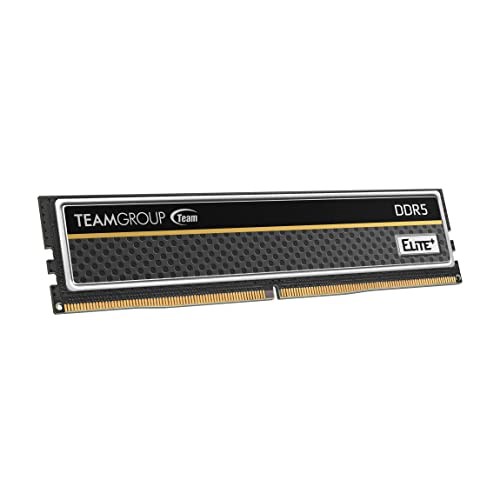

TEAMGROUP Elite Plus 64GB (2x32GB) DDR5 4800MHz CL40 image 3

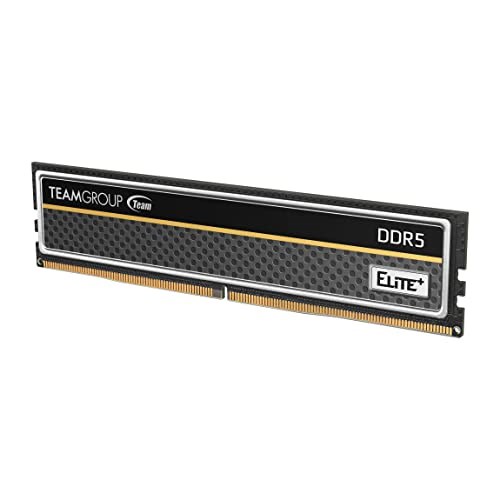

TEAMGROUP Elite Plus 64GB (2x32GB) DDR5 4800MHz CL40 image 4

TEAMGROUP Elite Plus 64GB (2x32GB) DDR5 4800MHz CL40 image 5

Specifications Overview

Model	TPBD564G4800HC40DC01
Type	288-pin DDR5 DIMM
Speed	DDR5-4800 MHz
Size	64GB (2 x 32GB)
CAS Latency	40
Timing	40-40-40-77
First Word Latency	16.66 ns
Voltage	1.1 V
Heat Spreader	Yes
ECC Support	No
Color	Black

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	4400	4800	5000	5200	5600	6000	6200	6400	6600	6800	7000	7200	7400	7600
36	16.36	15.00	14.40	13.85	12.86	12.00	11.61	11.25	10.91	10.59	10.29	10.00	9.73	9.47
37	16.82	15.42	14.80	14.23	13.21	12.33	11.94	11.56	11.21	10.88	10.57	10.28	10.00	9.74
38	17.27	15.83	15.20	14.62	13.57	12.67	12.26	11.88	11.52	11.18	10.86	10.56	10.27	10.00
39	17.73	16.25	15.60	15.00	13.93	13.00	12.58	12.19	11.82	11.47	11.14	10.83	10.54	10.26
40	18.18	16.67	16.00	15.38	14.29	13.33	12.90	12.50	12.12	11.76	11.43	11.11	10.81	10.53
41	18.64	17.08	16.40	15.77	14.64	13.67	13.23	12.81	12.42	12.06	11.71	11.39	11.08	10.79
42	19.09	17.50	16.80	16.15	15.00	14.00	13.55	13.13	12.73	12.35	12.00	11.67	11.35	11.05
43	19.55	17.92	17.20	16.54	15.36	14.33	13.87	13.44	13.03	12.65	12.29	11.94	11.62	11.32
44	20.00	18.33	17.60	16.92	15.71	14.67	14.19	13.75	13.33	12.94	12.57	12.22	11.89	11.58
45	20.45	18.75	18.00	17.31	16.07	15.00	14.52	14.06	13.64	13.24	12.86	12.50	12.16	11.84
46	20.91	19.17	18.40	17.69	16.43	15.33	14.84	14.38	13.94	13.53	13.14	12.78	12.43	12.11
47	21.36	19.58	18.80	18.08	16.79	15.67	15.16	14.69	14.24	13.82	13.43	13.06	12.70	12.37
48	21.82	20.00	19.20	18.46	17.14	16.00	15.48	15.00	14.55	14.12	13.71	13.33	12.97	12.63
49	22.27	20.42	19.60	18.85	17.50	16.33	15.81	15.31	14.85	14.41	14.00	13.61	13.24	12.89
50	22.73	20.83	20.00	19.23	17.86	16.67	16.13	15.63	15.15	14.71	14.29	13.89	13.51	13.16
51	23.18	21.25	20.40	19.62	18.21	17.00	16.45	15.94	15.45	15.00	14.57	14.17	13.78	13.42
52	23.64	21.67	20.80	20.00	18.57	17.33	16.77	16.25	15.76	15.29	14.86	14.44	14.05	13.68

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
