TEAMGROUP T-Create Master Overclocking 64GB (4 x 16GB) DDR5 6800MHz R-DIMM RAM

Name: TEAMGROUP T-Create Master Overclocking 64GB (4 x 16GB) DDR5 6800MHz R-DIMM
Brand: TEAM
SKU: CTCMD564G6800HC34BQC01

TEAMGROUP T-Create Master Overclocking 64GB (4 x 16GB) DDR5 6800MHz R-DIMM CTCMD564G6800HC34BQC01

(Change region)

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$1,285.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$1,799.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

TEAMGROUP T-Create Master Overclocking (PC5-54400) CL34 Hynix A-DIE Workstation Memory Module Ram Black - CTCMD564G6800HC34BQC01 CAS Latency: 34 Timing: CL34-44-44-84 Voltage: 1.40V Multi-channel Kit: Quad Channel Kit Part Number: CTCMD564G6800HC34BQC01

TEAMGROUP T-Create Master Overclocking 64GB (4 x 16GB) DDR5 6800MHz R-DIMM image 1

TEAMGROUP T-Create Master Overclocking 64GB (4 x 16GB) DDR5 6800MHz R-DIMM image 2

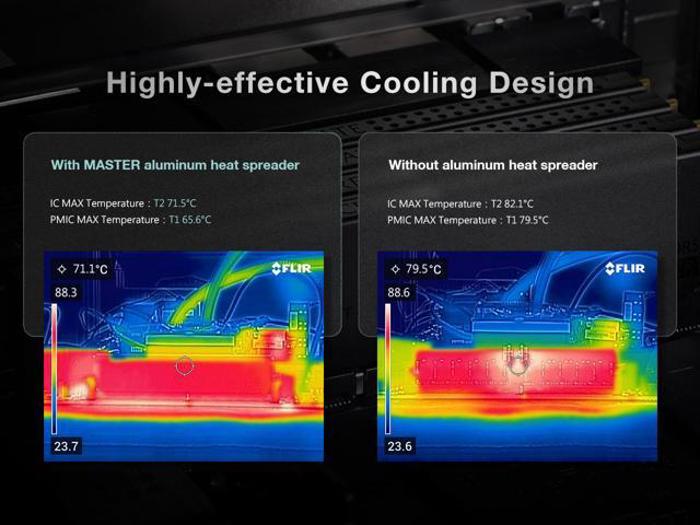

TEAMGROUP T-Create Master Overclocking 64GB (4 x 16GB) DDR5 6800MHz R-DIMM image 3

TEAMGROUP T-Create Master Overclocking 64GB (4 x 16GB) DDR5 6800MHz R-DIMM image 4

Specifications Overview

Model	CTCMD564G6800HC34BQC01
Type	288-pin DDR5 DIMM
Speed	DDR5-6800 MHz
Size	64GB (4 x 16GB)
CAS Latency	34
Timing	34-44-44-84
First Word Latency	10 ns
Voltage	1.4 V
Heat Spreader	Yes
ECC Support	Yes

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	5000	5200	5600	6000	6200	6400	6600	6800	7000	7200	7400	7600	7800	8000
34	13.60	13.08	12.14	11.33	10.97	10.63	10.30	10.00	9.71	9.44	9.19	8.95	8.72	8.50
35	14.00	13.46	12.50	11.67	11.29	10.94	10.61	10.29	10.00	9.72	9.46	9.21	8.97	8.75
36	14.40	13.85	12.86	12.00	11.61	11.25	10.91	10.59	10.29	10.00	9.73	9.47	9.23	9.00
37	14.80	14.23	13.21	12.33	11.94	11.56	11.21	10.88	10.57	10.28	10.00	9.74	9.49	9.25
38	15.20	14.62	13.57	12.67	12.26	11.88	11.52	11.18	10.86	10.56	10.27	10.00	9.74	9.50
39	15.60	15.00	13.93	13.00	12.58	12.19	11.82	11.47	11.14	10.83	10.54	10.26	10.00	9.75
40	16.00	15.38	14.29	13.33	12.90	12.50	12.12	11.76	11.43	11.11	10.81	10.53	10.26	10.00
41	16.40	15.77	14.64	13.67	13.23	12.81	12.42	12.06	11.71	11.39	11.08	10.79	10.51	10.25
42	16.80	16.15	15.00	14.00	13.55	13.13	12.73	12.35	12.00	11.67	11.35	11.05	10.77	10.50
43	17.20	16.54	15.36	14.33	13.87	13.44	13.03	12.65	12.29	11.94	11.62	11.32	11.03	10.75
44	17.60	16.92	15.71	14.67	14.19	13.75	13.33	12.94	12.57	12.22	11.89	11.58	11.28	11.00
45	18.00	17.31	16.07	15.00	14.52	14.06	13.64	13.24	12.86	12.50	12.16	11.84	11.54	11.25
46	18.40	17.69	16.43	15.33	14.84	14.38	13.94	13.53	13.14	12.78	12.43	12.11	11.79	11.50
47	18.80	18.08	16.79	15.67	15.16	14.69	14.24	13.82	13.43	13.06	12.70	12.37	12.05	11.75
48	19.20	18.46	17.14	16.00	15.48	15.00	14.55	14.12	13.71	13.33	12.97	12.63	12.31	12.00
49	19.60	18.85	17.50	16.33	15.81	15.31	14.85	14.41	14.00	13.61	13.24	12.89	12.56	12.25
50	20.00	19.23	17.86	16.67	16.13	15.63	15.15	14.71	14.29	13.89	13.51	13.16	12.82	12.50
51	20.40	19.62	18.21	17.00	16.45	15.94	15.45	15.00	14.57	14.17	13.78	13.42	13.08	12.75
52	20.80	20.00	18.57	17.33	16.77	16.25	15.76	15.29	14.86	14.44	14.05	13.68	13.33	13.00

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
