Thermaltake Urban S21 Case

Name: Thermaltake Urban S21
Brand: Thermaltake
SKU: VP800A1W2N
Rating: 4.5 (4 reviews)

Thermaltake Urban S21 Mid Tower VP800A1W2N

★★★★★

(4 reviews)

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

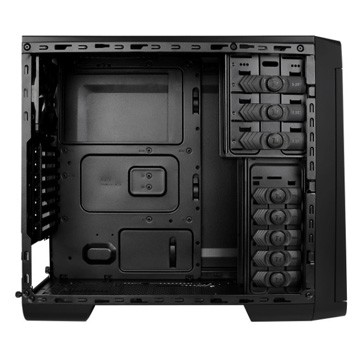

Urban S21 mainstream mid-tower, one of the members of Thermaltake newest chassis series with simple and elegant aesthetic; designed for users who looks for everything but a flamboyantly appearance.
Using metal brushed front door panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet elegant aesthetic.
The Front-top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports, a HD microphone and headset jacks, to grand direct access when needed.
Preinstalled two 120mm fans to optimize system ventilation. Plus pre-mounted hole for more ventilation options
Innovative 5.25” & 3.5” tool-free drive bay design minumized the hassles of installing ODD and HDD devices.

Specifications Overview

Model	VP800A1W2N
Release Date	May 2013 * First availability for purchase, it may not correspond to the actual market launch date.
Type	ATX Mid Tower
Color	Black
Includes Power Supply	No
External 5.25" Drive Bays	3
External 3.5" Drive Bays	1
Internal 2.5" Drive Bays	0
Internal 3.5" Drive Bays	5
Motherboard Compatibility	ATX, Micro ATX, Mini ITX
Front Panel I/O	USB 3.2 Gen 1 Type A
Dimensions	436 mm x 185 mm x 497 mm
Volume	40 L
Max VGA length allowance	320 mm
Expansion Slots	7
Back Connect Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

Pros

2x Quiet fans included
Long graphic cards support
Build quality

Cons

Poor cable management
Not much space for high CPU coolers

Description

Case Type	Mid Tower
Dimension	438 x 185 x 497 mm (17.2 x 7.3 x 19.6 inch)
Side Panel	Transparent Window
Color	Exterior & Interior : Black
Cooling System	Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Top (exhaust) :(optional) 120 x 120 x 25 mm Side (intake) : (optional) 120 x 120 x 25 mm Bottom (intake) : (optional) 120 x 120 x 25 mm
Material	SECC
Drive Bays	- Accessible : 3 x 5.25’’, 1 x 3.5’’ - Hidden : 5 x 3.5’’ , 1 x 2.5’’
Expansion Slots	7
Motherboards	9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Ports	USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
LCS Upgradable	Supports 1/2”、3/8”、1/4” water tube
Radiator Support	Top: 1 x 120mm
Other	CPU cooler height limitation: 155mm VGA length limitation: 320mm
