v-Color Manta XPrism 32GB (2x16GB) DDR5 7200MHz RAM

v-Color Manta XPrism 32GB (2x16GB) DDR5 7200MHz CL36 1.45V RGB TMXPL1672836SWK

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$169.99 + $35.00 Shipping	+ $35.00	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

32GB(16GBx2) DDR5 7200MHz(PC5-57600) CL 36 Timing 36-46-46-105 1.45V Product Spec for AMD EXPO: 32GB(16GBx2) DDR5 6200MHz(PC5-49600) CL 34 Timing 34-38-38-80 1.35V DDR5 MANTA Memory symbolizes v-colors breakthrough in the development of gaming memory for the next generation DDR5. Superior Speed at 7200 for Intel and Max speed at 6200 for AMD System. Edge Cutting Performance cannot be missed A- DIE Hynix IC for superb overclocking performance, great stability

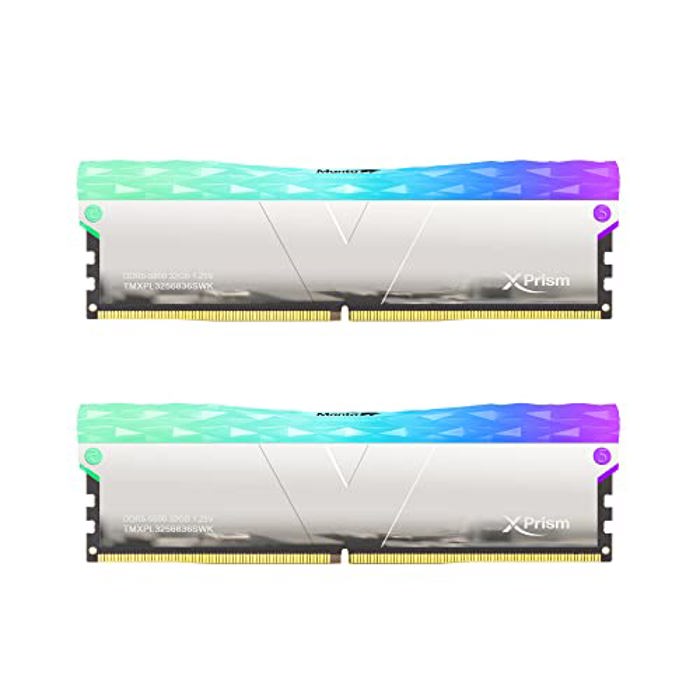

v-Color Manta XPrism 32GB (2x16GB) DDR5 7200MHz image 1

Specifications Overview

Model	TMXPL1672836SWK
Type	288-pin DDR5 DIMM
Speed	DDR5-7200 MHz
Size	32GB (2 x 16GB)
CAS Latency	36
Timing	36-46-46-105
First Word Latency	10 ns
Voltage	1.45 V
Heat Spreader	Yes
ECC Support	No
LED Color	RGB

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	5600	6000	6200	6400	6600	6800	7000	7200	7400	7600	7800	8000	8200	8400
28	10.00	9.33	9.03	8.75	8.48	8.24	8.00	7.78	7.57	7.37	7.18	7.00	6.83	6.67
29	10.36	9.67	9.35	9.06	8.79	8.53	8.29	8.06	7.84	7.63	7.44	7.25	7.07	6.90
30	10.71	10.00	9.68	9.38	9.09	8.82	8.57	8.33	8.11	7.89	7.69	7.50	7.32	7.14
31	11.07	10.33	10.00	9.69	9.39	9.12	8.86	8.61	8.38	8.16	7.95	7.75	7.56	7.38
32	11.43	10.67	10.32	10.00	9.70	9.41	9.14	8.89	8.65	8.42	8.21	8.00	7.80	7.62
33	11.79	11.00	10.65	10.31	10.00	9.71	9.43	9.17	8.92	8.68	8.46	8.25	8.05	7.86
34	12.14	11.33	10.97	10.63	10.30	10.00	9.71	9.44	9.19	8.95	8.72	8.50	8.29	8.10
35	12.50	11.67	11.29	10.94	10.61	10.29	10.00	9.72	9.46	9.21	8.97	8.75	8.54	8.33
36	12.86	12.00	11.61	11.25	10.91	10.59	10.29	10.00	9.73	9.47	9.23	9.00	8.78	8.57
37	13.21	12.33	11.94	11.56	11.21	10.88	10.57	10.28	10.00	9.74	9.49	9.25	9.02	8.81
38	13.57	12.67	12.26	11.88	11.52	11.18	10.86	10.56	10.27	10.00	9.74	9.50	9.27	9.05
39	13.93	13.00	12.58	12.19	11.82	11.47	11.14	10.83	10.54	10.26	10.00	9.75	9.51	9.29
40	14.29	13.33	12.90	12.50	12.12	11.76	11.43	11.11	10.81	10.53	10.26	10.00	9.76	9.52
41	14.64	13.67	13.23	12.81	12.42	12.06	11.71	11.39	11.08	10.79	10.51	10.25	10.00	9.76
42	15.00	14.00	13.55	13.13	12.73	12.35	12.00	11.67	11.35	11.05	10.77	10.50	10.24	10.00
43	15.36	14.33	13.87	13.44	13.03	12.65	12.29	11.94	11.62	11.32	11.03	10.75	10.49	10.24
44	15.71	14.67	14.19	13.75	13.33	12.94	12.57	12.22	11.89	11.58	11.28	11.00	10.73	10.48
45	16.07	15.00	14.52	14.06	13.64	13.24	12.86	12.50	12.16	11.84	11.54	11.25	10.98	10.71
46	16.43	15.33	14.84	14.38	13.94	13.53	13.14	12.78	12.43	12.11	11.79	11.50	11.22	10.95
47	16.79	15.67	15.16	14.69	14.24	13.82	13.43	13.06	12.70	12.37	12.05	11.75	11.46	11.19
48	17.14	16.00	15.48	15.00	14.55	14.12	13.71	13.33	12.97	12.63	12.31	12.00	11.71	11.43
49	17.50	16.33	15.81	15.31	14.85	14.41	14.00	13.61	13.24	12.89	12.56	12.25	11.95	11.67
50	17.86	16.67	16.13	15.63	15.15	14.71	14.29	13.89	13.51	13.16	12.82	12.50	12.20	11.90
51	18.21	17.00	16.45	15.94	15.45	15.00	14.57	14.17	13.78	13.42	13.08	12.75	12.44	12.14
52	18.57	17.33	16.77	16.25	15.76	15.29	14.86	14.44	14.05	13.68	13.33	13.00	12.68	12.38

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
