V-Color Manta XPrism RGB 64GB (2x32GB) DDR5 5600MHz RAM

V-Color Manta XPrism RGB 64GB (2x32GB) DDR5 5600MHz CL36 1.25V Silver (TMXPL3256836SWK)

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Product Spec: 64GB(32GBx2) |DDR5 5600MHz(PC5- 44800) | CL 36 | Timing 36-36-36-89 | 1.25V
DDR5 MANTA Memory symbolizes v-colors breakthrough in the development of gaming memory for the next generation DDR5.
Hynix ICs for superb overclocking performance, great stability, and a high tolerance for heavy workloads.
RGB Light bar redesigned with advanced tech for ultra smooth and bright lighting, allowing users to create a symphony of colors.
Personalize and control the lighting the way you want through major motherboard brands RGB software.Premuim Tailored Heatsink Built to perform- Hgh Quality Heatsink ensuring heat-dissipation for uncompromised performance under extreme loads.

V-Color Manta XPrism RGB 64GB (2x32GB) DDR5 5600MHz image 1

V-Color Manta XPrism RGB 64GB (2x32GB) DDR5 5600MHz image 2

V-Color Manta XPrism RGB 64GB (2x32GB) DDR5 5600MHz image 3

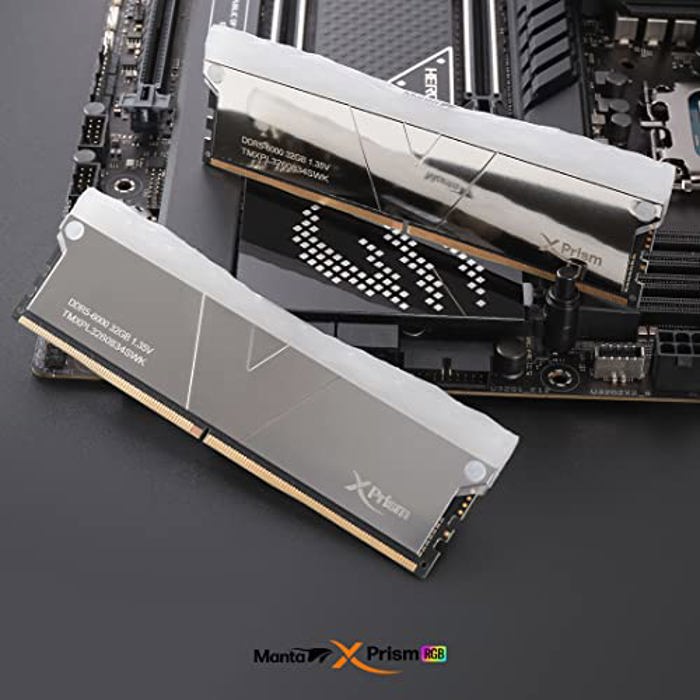

V-Color Manta XPrism RGB 64GB (2x32GB) DDR5 5600MHz image 4

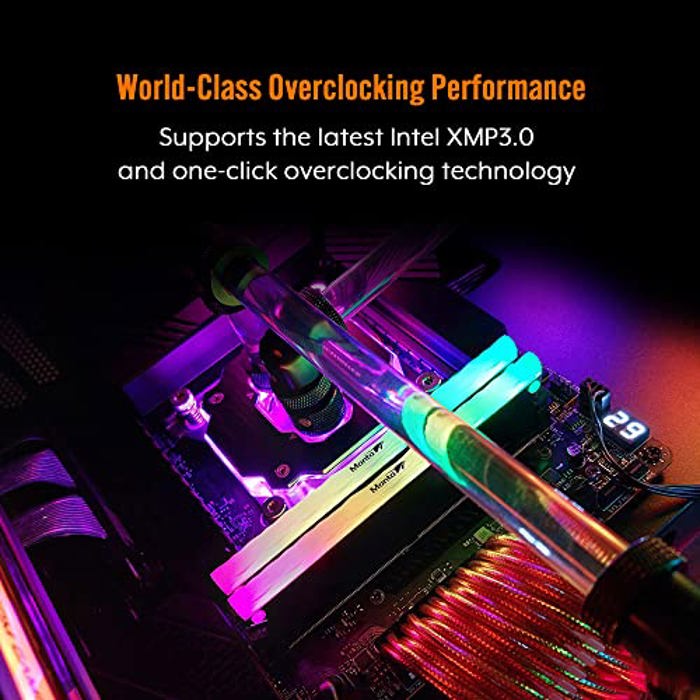

V-Color Manta XPrism RGB 64GB (2x32GB) DDR5 5600MHz image 5

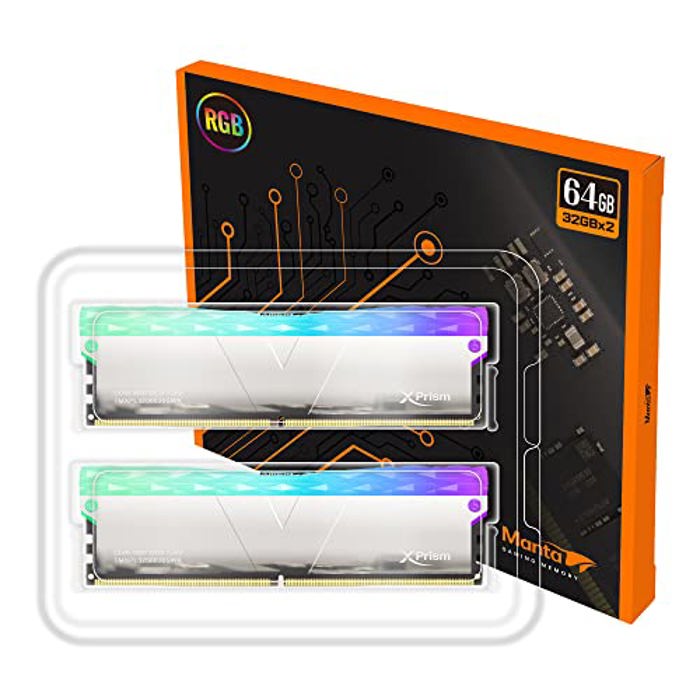

V-Color Manta XPrism RGB 64GB (2x32GB) DDR5 5600MHz image 6

Specifications Overview

Model	TMXPL3256836SWK
Type	288-pin DDR5 DIMM
Speed	DDR5-5600 MHz
Size	64GB (2 x 32GB)
CAS Latency	36
Timing	36-36-36-89
First Word Latency	12.86 ns
Voltage	1.25 V
Heat Spreader	Yes
ECC Support	No
LED Color	RGB

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	4400	4800	5000	5200	5600	6000	6200	6400	6600	6800	7000	7200	7400	7600
36	16.36	15.00	14.40	13.85	12.86	12.00	11.61	11.25	10.91	10.59	10.29	10.00	9.73	9.47
37	16.82	15.42	14.80	14.23	13.21	12.33	11.94	11.56	11.21	10.88	10.57	10.28	10.00	9.74
38	17.27	15.83	15.20	14.62	13.57	12.67	12.26	11.88	11.52	11.18	10.86	10.56	10.27	10.00
39	17.73	16.25	15.60	15.00	13.93	13.00	12.58	12.19	11.82	11.47	11.14	10.83	10.54	10.26
40	18.18	16.67	16.00	15.38	14.29	13.33	12.90	12.50	12.12	11.76	11.43	11.11	10.81	10.53
41	18.64	17.08	16.40	15.77	14.64	13.67	13.23	12.81	12.42	12.06	11.71	11.39	11.08	10.79
42	19.09	17.50	16.80	16.15	15.00	14.00	13.55	13.13	12.73	12.35	12.00	11.67	11.35	11.05
43	19.55	17.92	17.20	16.54	15.36	14.33	13.87	13.44	13.03	12.65	12.29	11.94	11.62	11.32
44	20.00	18.33	17.60	16.92	15.71	14.67	14.19	13.75	13.33	12.94	12.57	12.22	11.89	11.58
45	20.45	18.75	18.00	17.31	16.07	15.00	14.52	14.06	13.64	13.24	12.86	12.50	12.16	11.84
46	20.91	19.17	18.40	17.69	16.43	15.33	14.84	14.38	13.94	13.53	13.14	12.78	12.43	12.11
47	21.36	19.58	18.80	18.08	16.79	15.67	15.16	14.69	14.24	13.82	13.43	13.06	12.70	12.37
48	21.82	20.00	19.20	18.46	17.14	16.00	15.48	15.00	14.55	14.12	13.71	13.33	12.97	12.63
49	22.27	20.42	19.60	18.85	17.50	16.33	15.81	15.31	14.85	14.41	14.00	13.61	13.24	12.89
50	22.73	20.83	20.00	19.23	17.86	16.67	16.13	15.63	15.15	14.71	14.29	13.89	13.51	13.16
51	23.18	21.25	20.40	19.62	18.21	17.00	16.45	15.94	15.45	15.00	14.57	14.17	13.78	13.42
52	23.64	21.67	20.80	20.00	18.57	17.33	16.77	16.25	15.76	15.29	14.86	14.44	14.05	13.68

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
