ViewSonic VX2770Smh-LED Monitor

Name: ViewSonic VX2770Smh-LED
Brand: ViewSonic
SKU: VX2770Smh-LED
Rating: 4.2 (100 reviews)

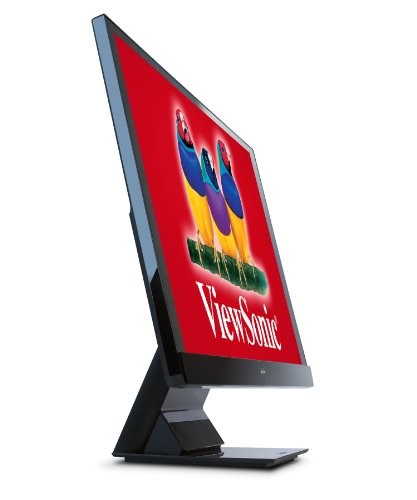

ViewSonic VX2770Smh-LED 27-Inch Full-HD 7ms IPS LED

★★★★★

(100 reviews)

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (1)

23-Inch

ViewSonic’s VX2770Smh-LED features an LED backlit 27" frameless widescreen monitor with up to 40% energy savings compared to a regular 27" monitor. Environmentally friendly mercury-free VX2770Smh-LED offers Full HD 1920x1080 resolution, HDMI and DVI with HDCP and VGA inputs, SRS Premium Sound, external power supply, and 30,000,000:1 MEGA Dynamic Contrast Ratio. The stylish glossy ID and thin profile combine to make it the center piece to your home or office. While the SuperClear IPS panel with wide viewing angles and high contrast ratio delivers extraordinary visual entertainment. A 3 year warranty, the industry’s best pixel performance policy, energy saving Eco mode and Windows 7 certification make VX2770Smh-LED an excellent choice for entertainment and gaming.

Specifications Overview

Model	VX2770Smh-LED
Screen Size	27"
Resolution	1920 x 1080
Pixel Density	81.59 PPI
Dot Pitch	0.31 mm
Panel Type	IPS
Widescreen	Yes
Aspect Ratio	16:9
Curved Screen	No
Viewing Angle	178° H x 178° V
Brightness	250 cd/m²
Contrast Ratio	30,000,000:1
Response Time	7 ms
Refresh Rate	75 Hz
Built-in Speakers	Yes
DVI	1
DisplayPort	0
HDMI	1
VGA	1
G-SYNC Support	No
FreeSync Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

Pros

Accurate out-of-the-box colours
Good contrast
Wide viewing angles

Cons

Slow response time

Description

Type
27” Color Active Matrix IPS TFT LCD
Display Area
23.5" horizontal x 13.2" vertical; 27.0" diagonal
Optimum Resolution
1920x1080 Full HD
Contrast Ratio
1000:1 (typ.); 30M:1 (dynamic)
Viewing Angles
178º horizontal, 178º vertical
Response Time
7ms (GTG)
Light Source
WLED with 30,000 hours (min.)
Brightness
250 cd/m2 (typ.)
Panel Surface
Anti-glare, hard-coating (3H)

VIDEO INPUT

Analog/Digital
RGB analog (0.7 / 1.0 Vp-p, 75 ohms)/ HDMI / DVI-D (TMDS, 100 ohms)
Frequency
Fh: 24~83kHz, Fv: 50~76Hz
Sync
Separate Sync

COMPATIBILITY

PC
PC compatibles (from VGA up to 1920x1080 non-interlaced)
Mac®
Pwoer Mac Up to 1920x1080

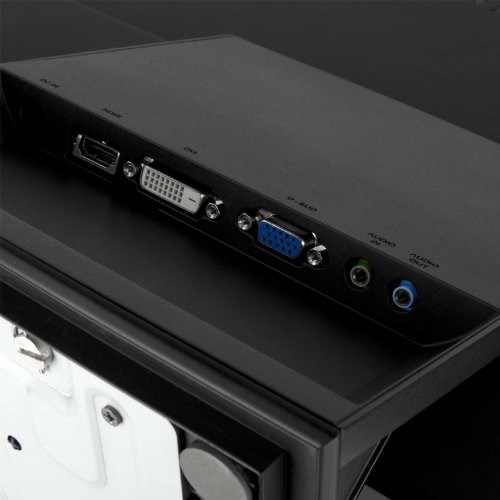

CONNECTOR

Analog/Digital
15-pin mini D-sub (VGA) / HDMI (with HDCP) DVI-D (with HDCP)
USB
N/A
Audio Input
3.5mm mini-jack
Headphone
3.5mm mini-jack
Power
External power adapter

AUDIO

Speakers
Built In Speakers

POWER

Voltage
AC 100–240V (universal), 50 / 60Hz
Consumption
30W (typ)
Eco Mode
26W (Optimize) / 22W (Conserve)
Power Save Mode
≤ 1W

CONTROLS

Basic
Power, 1, 2, up, down
OnView®
N/A
OSD
Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, DVI-D, HDMI), Color Adjust (sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B]), Audio Adjust (volume, mute, audio input), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Overscan, ECO-mode), Setup Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Sleep, Power Indicator), Memory Recall

OPERATING CONDITIONS

Temperature
32–104º F (0–40º C)
Humidity
20–90% (non-condensing)

DIMENSIONS (WxHxD)

Physical With Stand
24.5 x 18.1 x 7.6 in. / 622.3 x 459.3 x 192.5 mm
Physical Without Stand
N/A
Packaging
26.6 x 20.6 x 7.0 in. / 676 x 522 x 177 mm

WEIGHT

Gross
16.5 lb. / 7.5 kg
Net With Stand
11.0 lb. / 5.0 kg
Net Without Stand
N/A

Tilt

Forward 5º, Back 20º

Vesa Mount

Regulations

CE,CB, BSMI, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (including ICES003), NOM, GOST-R/Hygienic, UkrSEPRO, Erp, CCC, China Energy, EPEAT Silver, WEEE, RoHS, SVHC list
