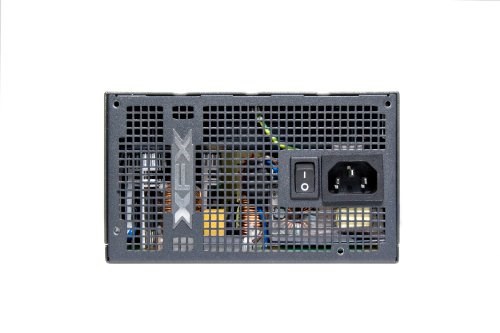

XFX ProSeries 750W Core Edition Power Supply

Name: XFX ProSeries 750W Core Edition
Brand: XFX
SKU: P1-750S-NLB9
Rating: 4.3 (221 reviews)

XFX ProSeries 750W Core Edition 80PLUS Bronze P1-750S-NLB9

★★★★★

(221 reviews)

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$223.35 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (2)

	550w Gold
	750w Gold

750W of continuous power at 50°C
Single, high power +12V rail (Easy Rail Technology)
Quiet 135mm ball bearing fan provides superior cooling
Supports multiple high-end graphic adapters (NVIDIA SLI & ATI Crossfire Ready)
Supports the latest ATX12V and EPS12V standards

Specifications Overview

Model	P1-750S-NLB9
Release Date	April 2011 * First availability for purchase, it may not correspond to the actual market launch date.
Wattage	750 W
Type	ATX
Modular	No
Efficiency	80+ Bronze
Output	+3.3V@25A, +5V@25A, +12V@62A, -12V@0.5A, +5VSB@3.0A
PCI-Express 16 Pin 12VHPWR Connectors	0
PCI-Express 12 Pin Connectors	0
PCI-Express 6+2 Pin Connectors	2
PCI-Express 6 Pin Connectors	2
EPS Connectors	1
SATA Connectors	8
Molex Connectors	7
Length	170 mm

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

Pros

Excellent voltage regulation
Excellent ripple suppression
80PLUS Bronze
5-years warranty

Cons

A bit loud under heavy load
Not modular

Description

General

+12V Rail Outputs : Single

ATX12V 2.2 & ESP12V 2.91 Compliant : Yes

Maximum Wattage (W) : 750

Modular Cables : Yes

Performance Category : Standard

UPC Number : 778656052604

Technologies

CrossFire Ready : Yes

SLI Ready : Yes

Ratings & Efficiencies

AC Input Current (Arms) : 10-5 (Maximum)

AC Input Frequency (Hz) : 47-63

AC Input Voltage (Vac) : 90-264

Active Power Factor Correction (PFC) : Yes

DC Output Voltage Regulation : ±10%

Other Features

DC to DC Converters (+3.3 & +5V) : No

Dual Magnetic Amplifier Circuit (+3.3 & +5V) : No

EZ Grip Connectors : No

Gold Plated Connectors : No

High Quality Schottky Diodes : No

High Reliable 105°C Japanese Capacitors : Yes

Solid State Capacitors : Yes

Load Range

-12V (mW) : 120

+12V1 (mW) : 120

+3.3V (mV) : 50

+5V (mV) : 50

+5VSB (mV) : 50

Max -12V Output Current (A) : 0.5

Max +12V1 Output Current (A) : 62

Max +3.3V Output Current (A) : 25

Max +5V Output Current (A) : 25

Max +5VSB Output Current (A) : 3

Min +12V1 Output Current (A) : 0.6

Wattage(W) : 750W

Cable Connectors

Fixed FDD : up to 1

Fixed Peripheral : up to 7

Fixed 6-pin PCI-E : 2

Fixed 6+2-pin PCI-E : 2

Fixed ATX12V / EPS12V : One 4+4-pin

Fixed Motherboard Connector : 20+4 Pin

Fixed SATA : up to 8

Safety & Protection

Over Current Protection (OCP) : Yes

Over Power Protection (OPP) : Yes

Over Voltage Protection (OVP) : Yes

Short Circuit Protection (SCP) : Yes

Under Voltage Protection (UVP) : Yes

Physical

Cooling Fan Size (mm) : 135

Intake Fan: Airflow (CFM/min) : 82

Intake Fan: Diameter (mm) : 135 x 135 x 25 mm

Master Carton Dimensions (cm) : 38.1 x 47 x 29.2

Master Carton Dimensions (inch) : 15.0 x 18.5 x 11.5

Master Carton Weight (Kg) : 17.2 est.

Master Carton Weight (lb) : 37.9 est.

Package Dimensions (cm) : 35.8 x 22.6 x 13.8

Package Dimensions (inch) : 14.1 x 8.9 x 5.43

Package Weight (Kg) : 3.25 est

Package Weight (lb) : 7.1 est.

PSU Dimension (cm) : 17.0 x 15.0 x 8.6

PSU Dimension (inch) : 6.7 x 5.9 x 3.4

Units per Carton : 4

Certifications & Standards

C-tick : Yes

CB : Yes

CUL : Yes

FCC Class B : Yes

TUV : Yes

UL : Yes

Expert reviews

Just like the 650W model, there is really nothing bad about the performance of the Pro 750W Core Edition. Once again, the only major flaws I can find are in the packaging and the barrage of "single 12V is better" marketing hooey. Look past the...
