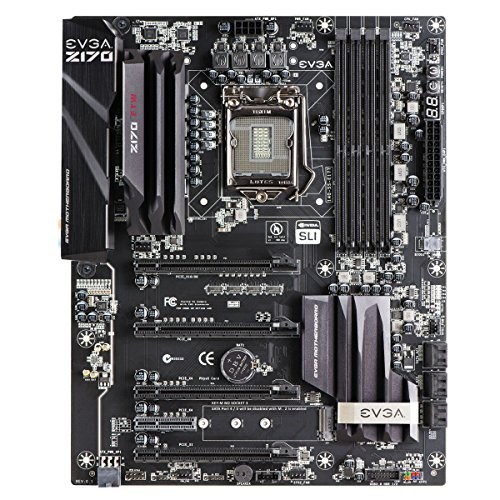

EVGA Z170 FTW

Are you visiting from United States? Go to the United States US site.
EVGA Z170 FTW LGA-1151 DDR4 ATX 140-SS-E177-KR

EVGA Z170 FTW LGA-1151 DDR4 ATX 140-SS-E177-KR

Venditore Prezzo Compra
-
Compra

* Pangoly potrebbe guadagnare una commissione quando utilizzi uno dei link per effettuare un acquisto. (Disclosure)

* I prezzi dei prodotti e la disponibilità sono soggetti a modifiche frequenti. Verranno applicate tutte le informazioni su prezzi e disponibilità visualizzate su Amazon al momento dell'acquisto.
  • Contenuto d'oro aumentato del 150%^Tracce audio isolate per una migliore chiarezza del suono^5 Phase PWM / 6 Layer PCB, SLI fino a 2 Way SLI + PhysX^Con 8 USB 3.0, 2 USB 2.0, 4 moduli DIMM, due canali DDR4 3200 MHz +, fino a 64 GB^OnBoard POST Code indicator e CPU Temp Monitor

Scheda tecnica

Modello 140-SS-E177-KR
Disponibile da Agosto 2015

* Prima data di disponibilità per l'acquisto, potrebbe non necessariamente corrispondere a quando il prodotto è stato lanciato sul mercato.

Socket LGA1151
Formato ATX
Chipset Intel Z170
Memoria Supportata DDR4
1866Mhz 2133Mhz 2400Mhz 2800Mhz 3000Mhz 3200Mhz
* Le velocità di clock più elevate potrebbero richiedere l'abilitazione del profilo XMP nel BIOS della scheda madre
** Il supporto per la compatibilità delle RAM potrebbe dipendere anche dal controller di memoria della CPU
Supporto RAM ECC No
Supporto SLI
Supporto CrossFire
Supporto RAID
Back Connect No
Wireless LAN No
Slot PCI-Express x16 4
Slot PCI-Express x4 1
Slot PCI-Express x1 0
Porte SATA 6 Gbps 6
Porte SATA Express 0
Porte M.2 1
Supporto dispositivi M.2
  • 2242 / 2260 / 2280 - M Key
Slot RAM 4
RAM Massima Supportata 64 GB
Connettori USB 2.0 0
Connettori USB 3.2 Gen 1 2
Connettori USB 3.2 Gen 2 0
Connettori USB 3.2 Gen 2x2 0

Descrizione

Specifications

  • Intel® Z170 Chipset
  • SLI – Up to 2 Way SLI + PhysX
  • 8 USB 3.0, 2 USB 2.0
  • 4 DIMMs, dual channel DDR4, 3200 MHz+, up to 64GB
  • Solid State capacitors
  • Form Factor – ATX
  • Intel NIC (i219 PHY)
  • Realtek 8 channel audio + optical out
  • M.2 Key M up to 32GB/s
  • Replaceable BIOS Chip
  • PCI-E Lanes – 16

Features

  • 5 Phase PWM
  • 6 Layer PCB
  • Onboard Power, Reset, and CMOS Reset buttons
  • Isolated Audio traces for better sound clarity
  • Onboard POST Code Indicator/CPU Temp Monitor
  • Black Nickel CPU ILM
  • 150% Increased Gold Content

External I/O

  • 2x USB 2.0
  • 6x USB 3.0
  • Intel NIC (i219 PHY)
  • HDMI 1.4
  • Display Port 1.2
  • Realtek 8 channel audio + optical out
  • CMOS reset switch

Internal I/O

  • 1x USB 3.0 header (2 ports)
  • 6 SATA 6G
  • M.2 Key M


Recensioni tecniche

80

The EVGA Z170 FTW is a solid performer and OC's well and EVGA's long standing commitment to quality over marketing sensationalism shows. At first look we aren't the happiest with the PCI-e layout and with the Z170 chipsets inherent limitations your SLI...
