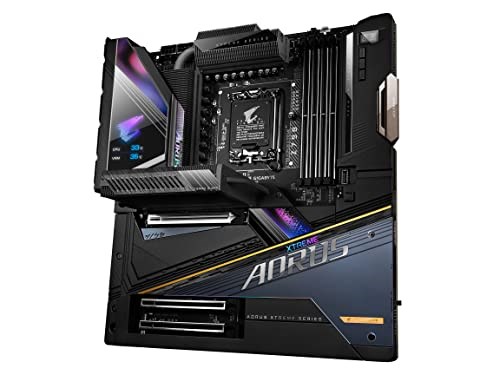

GIGABYTE Z790 AORUS XTREME LGA 1700 EATX

GIGABYTE Z790 AORUS XTREME LGA 1700 EATX

Non sono disponibili offerte nella tua regione selezionata. Altri venditori sono disponibili in un'altra regione geografica.
Venditore Prezzo Compra
Non disponibile
$799,99
+Spedizione gratuita
Compra
Non disponibile
$799,99
+Spedizione gratuita
Compra
Disponibile
$1.544,90
+Spedizione gratuita
Compra
Non disponibile
$1.797,99
Compra
-
Compra

* Pangoly potrebbe guadagnare una commissione quando utilizzi uno dei link per effettuare un acquisto. (Disclosure)

* I prezzi dei prodotti e la disponibilità sono soggetti a modifiche frequenti. Verranno applicate tutte le informazioni su prezzi e disponibilità visualizzate su Amazon al momento dell'acquisto.
Avviso cambio di prezzo

$

Gli alert di prezzo non sono disponibili per Amazon.

  • GIGABYTE Z790 AORUS XTREME LGA 1700 Intel Z790 EATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, Marvell AQtion 10GbE LAN, Q-Flash Plus, EZ-Latch Plus Memory Standard: Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Number of Memory Slots: 4x288pin (DDR5) PCI Express 5.0 x16: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector.

Scheda tecnica

Modello Z790 AORUS XTREME
Socket LGA1700
Formato EATX
Chipset Intel Z790
Memoria Supportata DDR5
4000Mhz 4800Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7400Mhz 7600Mhz 7800Mhz 7900Mhz 7950Mhz
* Le velocità di clock più elevate potrebbero richiedere l'abilitazione del profilo XMP nel BIOS della scheda madre
** Il supporto per la compatibilità delle RAM potrebbe dipendere anche dal controller di memoria della CPU
Supporto RAM ECC No
Canali Audio ESS ES9280AC DAC chip + 2 ESS ES9080 chips
DTS® Sound Unbound™
High Definition Audio
2-channel
Support for S/PDIF Out
Chipset LAN Marvell AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)Intel 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Velocità Massima LAN 10Gbps + 10/100/1000/2500Mbps
Supporto SLI No
Supporto CrossFire
Supporto RAID
Back Connect No
Porte I/O Posteriori
  • 1 x Q-Flash Plus button
  • 1 x OC Ignition button
  • 2 x SMA antenna connectors (2T2R)
  • 2 x Thunderbolt 4 connectors (USB Type-C ports with USB 3.2 Gen 2 support)
  • 10 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
  • * The mic in jack supports only mono microphone input
Wireless LAN
Generazione Wi-Fi 6E
Slot PCI-Express x16 3
Slot PCI-Express x4 0
Slot PCI-Express x1 0
Porte SATA 6 Gbps 4
Porte SATA Express 0
Porte M.2 5
Supporto dispositivi M.2
  • 2280 / 25110 - M Key
  • 2280 / 25110 - M Key
  • 2280 / 22110 - M Key
  • 2280 / 22110 - M Key
  • 2260 / 2280 - M Key
Slot RAM 4
RAM Massima Supportata 192 GB
Connettori USB 2.0 1
Connettori USB 3.2 Gen 1 2
Connettori USB 3.2 Gen 2 0
Connettori USB 3.2 Gen 2x2 1
