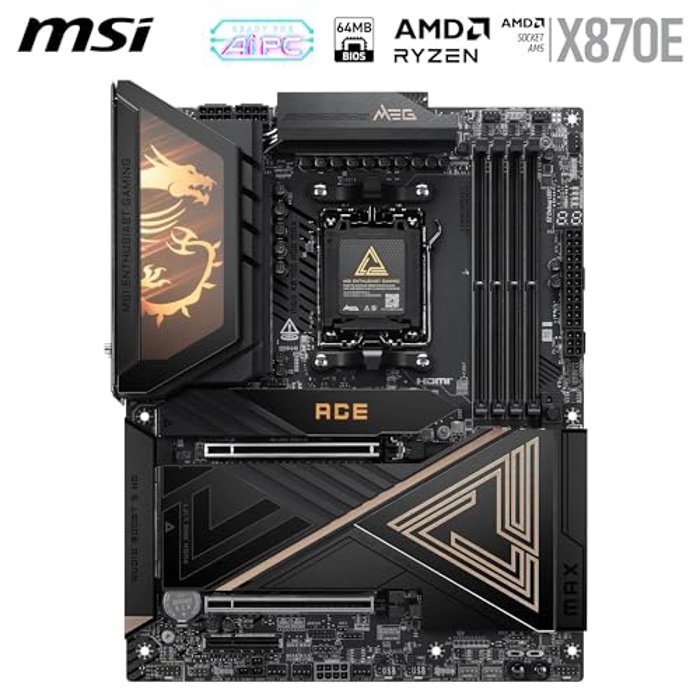

MSI MEG X870E ACE MAX

Are you visiting from United States? Go to the United States US site.
MSI MEG X870E ACE MAX AM5-64MB BIOS ROM 110A SPS VRM DDR58400+ MT/s OC M.2 & PCIe 5.0 USB4 Wi-Fi 7 10G LAN ATX

MSI MEG X870E ACE MAX AM5-64MB BIOS ROM 110A SPS VRM DDR58400+ MT/s OC M.2 & PCIe 5.0 USB4 Wi-Fi 7 10G LAN ATX

Venditore Prezzo Compra
Disponibile
€669,00
+ €19,90 Spedizione
Compra
Disponibile
€697,92
+Spedizione gratuita
Compra
Disponibile
€734,62
+Spedizione gratuita
Compra
Disponibile
€733,99
+ €6,50 Spedizione
Compra
Non disponibile
€749,00
+Spedizione gratuita
Compra
Disponibile
€751,80
+ €5,90 Spedizione
Compra
Disponibile
€895,75
+ €15,44 Spedizione
Compra
Disponibile
€942,82
+ €10,90 Spedizione
Compra

* Pangoly potrebbe guadagnare una commissione quando utilizzi uno dei link per effettuare un acquisto. (Disclosure)

* I prezzi dei prodotti e la disponibilità sono soggetti a modifiche frequenti. Verranno applicate tutte le informazioni su prezzi e disponibilità visualizzate su Amazon al momento dell'acquisto.
Avviso cambio di prezzo

Gli alert di prezzo non sono disponibili per Amazon.

  • ULTRA POWER+ - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MEG X870E ACE MAX employs a 18 Duet Rail Power Phase with 110A SPS for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
  • FROZR GUARD - Premium cooling features such as Wavy fin design, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads, double-sided EZ M.2 Shield Frozr II, and Combo-fan (for pump & system) header (3A)
  • DDR5 MEMORY, PCIe 5.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, up to 8400+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards
  • QUINTUPLE M.2 CONNECTORS - Storage options include 2 x M.2 Gen5 x4 128Gbps slots, 3 x M.2 Gen4 x4 64Gbps slots with EZ M.2 Shield Frozr II to prevent thermal throttling
  • ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 with Bluetooth 5.4 & 10Gbps plus 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 HD (supports S/PDIF output)

Scheda tecnica

Modello
  • MEG X870E ACE MAX
  • 7E85-001R
Socket AM5
Formato ATX
Chipset AMD X870E
Memoria Supportata DDR5
4800Mhz 8400Mhz
* Le velocità di clock più elevate potrebbero richiedere l'abilitazione del profilo XMP nel BIOS della scheda madre
** Il supporto per la compatibilità delle RAM potrebbe dipendere anche dal controller di memoria della CPU
Supporto RAM ECC No
Supporto SLI No
Supporto CrossFire No
Supporto RAID
Back Connect No
Wireless LAN
Generazione Wi-Fi 7
Slot PCI-Express x16 2
Slot PCI-Express x4 1
Slot PCI-Express x1 0
Porte SATA 6 Gbps 4
Porte SATA Express 0
Porte M.2 6
Supporto dispositivi M.2
  • 2260 / 2280 - M Key
  • 2260 / 2280 - M Key
  • 2280 / 22110 - M Key
  • 2260 / 2280 - M Key
  • 2280 - M Key
  • 2230 - E Key
Slot RAM 4
RAM Massima Supportata 256 GB
Connettori USB 2.0 2
Connettori USB 3.2 Gen 1 2
Connettori USB 3.2 Gen 2 0
Connettori USB 3.2 Gen 2x2 1
