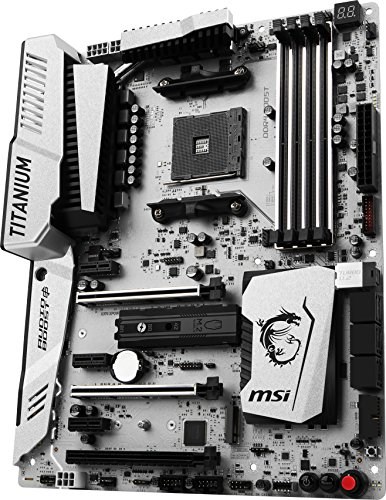

MSI X370 XPOWER GAMING TITANIUM Scheda Madre

Are you visiting from United States? Go to the United States US site.
MSI X370 XPOWER GAMING TITANIUM DDR4 ATX

MSI X370 XPOWER GAMING TITANIUM DDR4 ATX

★ ★ ★ ☆ ☆
(40 recensioni) Aggiungi una recensione
(Cambia regione)

Compra ora

* Pangoly potrebbe guadagnare una commissione quando utilizzi uno dei link per effettuare un acquisto. (Disclosure)

* I prezzi dei prodotti e la disponibilità sono soggetti a modifiche frequenti. Verranno applicate tutte le informazioni su prezzi e disponibilità visualizzate su Amazon al momento dell'acquisto.
  • Processore X370 Xpower Gaming Titanium, Atx AM4 Pcie 3.0 4Xddr4 6Xsata 6Gb/S In
  • Porte esterne: 1x HDMI 2.0, 1x porta display 1.2, 1x USB-C 3.1, 1x USB-A 3.1, 4x USB-A 3.0, 3x USB-A 2.0, 1x Gb LAN (Intel I211-AT), 5x prese, 1x S/ PDIF (ottico), 1x tastiera PS/ 2, 1x Clear CMOS.
  • Porte interne: 4x USB 3.0, 4x USB 2.0, 1x USB-C 2.0 (onboard), 6x SATA 6Gb/s (X370), 2x ventole CPU 4 pin, 4x ventole 4 pin, 1x chip RGB, 1x chip TPM.

Scheda tecnica

Modello X370 XPOWER GAMING TITANIUM
Disponibile da Marzo 2017

* Prima data di disponibilità per l'acquisto, potrebbe non necessariamente corrispondere a quando il prodotto è stato lanciato sul mercato.

Serie
Socket AM4
Formato ATX
Chipset AMD X370
Memoria Supportata DDR4
1866Mhz 2133Mhz 2400Mhz 2666Mhz 2933Mhz 3200Mhz
* Le velocità di clock più elevate potrebbero richiedere l'abilitazione del profilo XMP nel BIOS della scheda madre
** Il supporto per la compatibilità delle RAM potrebbe dipendere anche dal controller di memoria della CPU
Supporto RAM ECC
Chipset Audio Realtek ALC1220
Canali Audio 7.1-Channel High Definition Audio
Supports S/PDIF output
Chipset LAN Intel i211AT
Velocità Massima LAN 10/100/1000Mbps
Supporto SLI
Supporto CrossFire
Supporto RAID
Wireless LAN
Slot PCI-Express x16 3
Slot PCI-Express x4 0
Slot PCI-Express x1 3
Porte SATA 6 Gbps 6
Porte SATA Express 0
Porte M.2 2
Supporto dispositivi M.2
  • 2242 / 2260 / 2280 / 22110 - M Key
  • 2242 / 2260 / 2280 - M Key
Slot RAM 4
RAM Massima Supportata 64 GB
Connettori USB 2.0 2
Connettori USB 3.2 Gen 1 2
Connettori USB 3.2 Gen 2 0

Descrizione

CPU

• Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
* This function will be supported depend on the CPU.



Chipset

• AMD® X370 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
• Dual channel memory architecture
* 7th Gen A-series/ Athlon ™ processors support a maximum of 2400 MHz.
  Please refer www.msi.com for more information on compatible memory



Slots

• 2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
- RYZEN series processors support x16/x0, x8/x8 mode
- 7th Gen A-series/ Athlon™ processors support x8/x0 mode
• 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)
• 3 x PCIe 2.0 x1 slots



Onboard Graphics


• 1 x HDMI™ 2.0 port, supports a maximum resolution of 4096x2160@60Hz*
• 1 x DisplayPort, supports a maximum resolution of 4096x2160@60Hz*
* Only support when using a 7th Gen A-series/ Athlon™ processors
* Maximum shared memory of 2048 MB


Multi-GPU


• RYZEN series processor
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
• 7th Gen A-series/ Athlon™ processor
- Supports 2-Way AMD® CrossFire™ Technology


Storage

• AMD® X370 Chipset
• 6 x SATA 6Gb/s ports*
• 2 x M.2 ports (Key M)
- M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
• 1 x U.2 port
- Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) NVMe storage
* Maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs or 2x M.2 SATA SSDs + 4x SATA HDDs.


RAID

• AMD® X370 Chipset
• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices



USB

• ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• AMD® X370 Chipset
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
- 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

• AMD® CPU
- 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel



Audio

• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output



LAN

• 1 x Intel® I211AT Gigabit LAN controller



Internal I/O Connectors


- 1 x 24-pin ATX 12V power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x 6-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x RGB LED connector
- 1 x Digit Debug Code LED
- 1 x 2-pin Slow mode connector
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector



Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 1 x Clear CMOS button
- 3 x USB 2.0 Type-A ports
- 1 x DisplayPort
- 1 x HDMI™ 2.0 port
- 1 x LAN (RJ45) port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector



Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor



Mounting

• 9 mounting holes
