Asus Prime X299 Edition 30 Motherboard

Asus Prime X299 Edition 30 X299 LGA 2066 DDR4 4266 MHz Wi-Fi 6 Type-C Thunderbolt 3 M.2 USB 3.2 Aura Sync RGB ATX

Asus Prime X299 Edition 30 X299 LGA 2066 DDR4 4266 MHz Wi-Fi 6 Type-C Thunderbolt 3 M.2 USB 3.2 Aura Sync RGB ATX
★★★★★
(1 reviews) Add a product review
Seller Price
Out of Stock
$749.99
Buy
-
Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.
Price Alert

$
Price alerts are not available for Amazon.
  • Intel X299 LGA 2066 Socket: Ready For The Latest Intel Core X-Series Processors To Maximize Connectivity And Speed With Up To Three M.2 Drives, USB 3.2 Gen 2, Thunderbolt 3, Intel VROC And Intel Optane Memory Compatibility
  • Robust Power & Cooling Solution: 16 IR3555 Power Stages, Procool II Connectors, Alloy Chokes And 10K Japanese-Made Capacitors For Stable Power Delivery, Skived-Fin Heatsink, Active Heatsink, M.2 Heatsinks, 2Oz-Pcb Design And Back Plates.
  • High-Performance Networking: Onboard Wi-Fi 6 (802.11Ax) With MU-MIMO Support, Aquantia 5 Gaps Ethernet And Intel Gigabit Ethernet
  • Next Gen Connectivity: Features Two Type-C Thunderbolt 3 With Displayport 1.4, Three M.2, Front 1X USB 3.2 Gen 2 Connector, 4X USB 3.1 Gen 2 Connectors And Multi- GPU Support.
  • Unmatched Personalization: Livedash OLED And Exclusive AURA Sync RGB Lighting, Including RGB Headers And Addressable Gen 2 RGB Headers
  • Industry Leading Audio: High Fidelity Audio With Crystal Sound 3, DTS Sound Unbound For Pristine, Powerful Audio
  • Diy Friendly: Pre-Mounted I/O Shield, Flexkey, Asus Safe Slot, Asus Node Connector And BIOS Flashback For A Friendlier Building Experience
  • Ai Overclocking: Quickly Optimizes Your CPU Performance Based On The CPU And Cooler, Achieving Results That Are Extremely Close To Manual Tuning By Experts

Specifications Overview

Model
  • Prime X299 Edition 30
  • X299 Edition 30
  • 90MB1190-M0EAY0
Release Date September 2019

* First availability for purchase, it may not correspond to the actual market launch date.

Series Prime
Socket LGA2066
Form factor ATX
Chipset Intel X299
Supported Memory DDR4
2133Mhz 2400Mhz 2666Mhz 2800Mhz 2933Mhz 3000Mhz 3200Mhz 3333Mhz 3400Mhz 3600Mhz 3800Mhz 3866Mhz 4000Mhz 4133Mhz 4266Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support
Audio Chipset Realtek S1220A High Definition Audio CODEC
Audio Channels 8 Channels
LAN Chipset Aquantia AQC111C
Max LAN Speed 100/1000/2500/5000Mbps + 10/100/1000Mbps
SLI Support
CrossFire Support
RAID Support

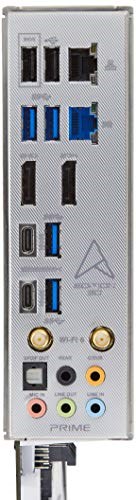

Back I/O Ports
  • 2 x Thunderbolt 3 ports Type-C
  • 2 x DisplayPort IN ports for Thunderbolt 3
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.2 Gen 1
  • 2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • 1 x ASUS Wi-Fi Module
  • 1 x AQC-111C 5G LAN port
Wireless LAN
Wi-Fi Generation 6
PCI-Express x16 Slots 3
PCI-Express x4 Slots 0
PCI-Express x1 Slots 2
SATA 6 Gbps Ports 8
SATA Express Ports 0
M.2 Ports 3
M.2 Devices support
  • 2242 / 2260 / 2280 / 22110 - M Key
  • 2242 / 2260 / 2280 / 22110 - M Key
  • 2242 / 2260 / 2280 / 22110 - M Key
RAM Slots 8
Maximum Supported RAM 256 GB
Onboard USB 2.0 1
Onboard USB 3.2 Gen 1 2
Onboard USB 3.2 Gen 2 1
Onboard USB 3.2 Gen 2x2 0
