Name: ASUS TUF Gaming B760M-PLUS WiFi II
Brand: ASUS
SKU: TUF GAMING B760M-PLUS WIFI II
Rating: 3.0 (1 reviews)

ASUS TUF Gaming B760M-PLUS WiFi II LGA 1700 M.2 Slots DDR5 WiFi 6E Q-Antenna 2.5Gb Ethernet micro ATX

★★★☆☆

(1 reviews)

(Change region)

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$194.99		Buy
(Used from $173.11) Last updated 49 minutes ago.
In Stock	In Stock	$194.99 +Free shipping	+Free	Buy
In Stock	In Stock	$194.99 +Free shipping	+Free	Buy
In Stock	In Stock	$260.98 + $29.99 Shipping	+ $29.99	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (3)

	ATX TUF B760-Plus\|DDR5\|WiFi 6 $159.99
	mATX TUF B760-BTF(Hidden-Connector)\|DDR5\|WiFi 6 $219.99
	mATX TUF B760-Plus\|DDR4\|WiFi 6 $172.99

Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors
Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+8 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Latest connectivity: PCIe 5.0 slot, three PCIe 4.0 M.2 slots, rear USB 20Gbps Type-C, front panel header for USB 10Gbps Type-C and Thunderbolt (USB4) header support
Made for online gaming: WiFi 6E, Realtek 2.5Gb Ethernet, TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

ASUS TUF Gaming B760M-PLUS WiFi II image 1

ASUS TUF Gaming B760M-PLUS WiFi II image 2

ASUS TUF Gaming B760M-PLUS WiFi II image 3

ASUS TUF Gaming B760M-PLUS WiFi II image 4

ASUS TUF Gaming B760M-PLUS WiFi II image 5

ASUS TUF Gaming B760M-PLUS WiFi II image 6

ASUS TUF Gaming B760M-PLUS WiFi II image 7

ASUS TUF Gaming B760M-PLUS WiFi II image 8

ASUS TUF Gaming B760M-PLUS WiFi II image 9

ASUS TUF Gaming B760M-PLUS WiFi II image 10

ASUS TUF Gaming B760M-PLUS WiFi II image 11

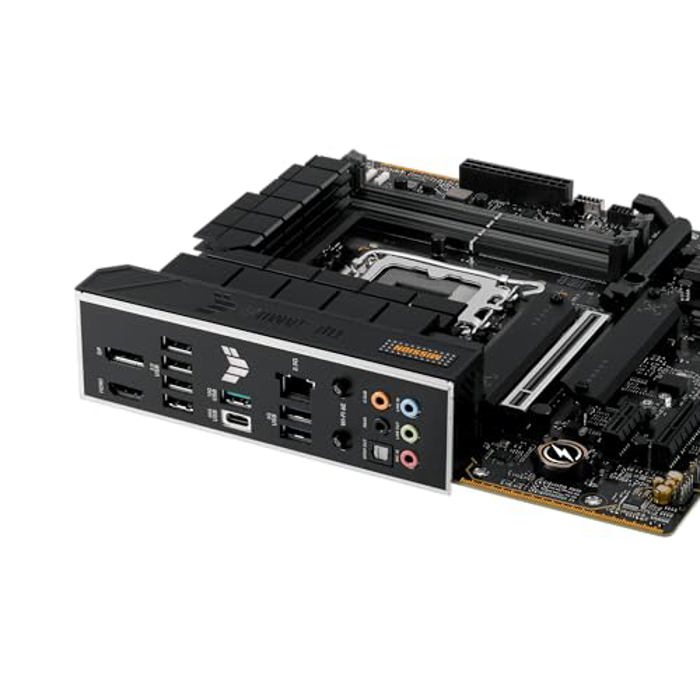

ASUS TUF Gaming B760M-PLUS WiFi II image 12

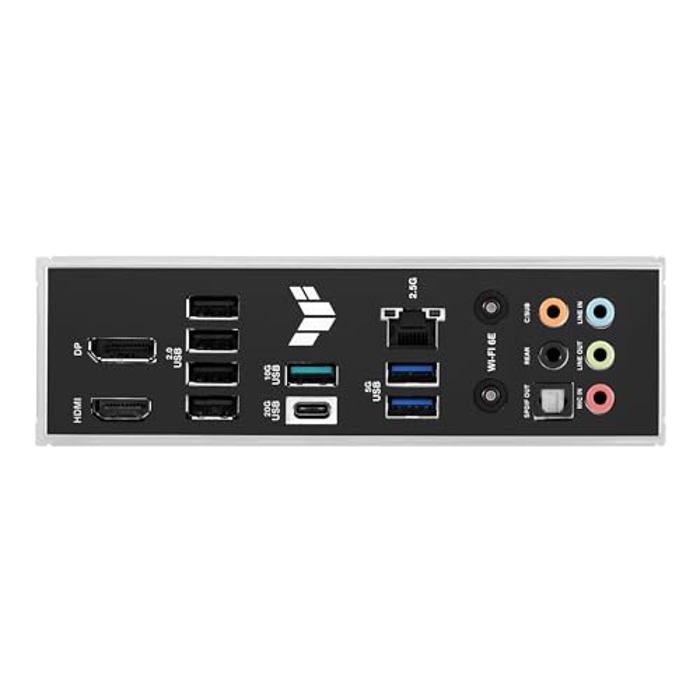

ASUS TUF Gaming B760M-PLUS WiFi II image 13

ASUS TUF Gaming B760M-PLUS WiFi II image 14

Specifications Overview

Model	TUF GAMING B760M-PLUS WIFI II 90MB1HE0-M0AAY0 90MB1HE0-M0EAY0
Release Date	February 2024 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1700
Form factor	Micro ATX
Chipset	Intel B760
Supported Memory	DDR5 4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7800Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	7.1 Channels
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	1
PCI-Express x4 Slots	1
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0
