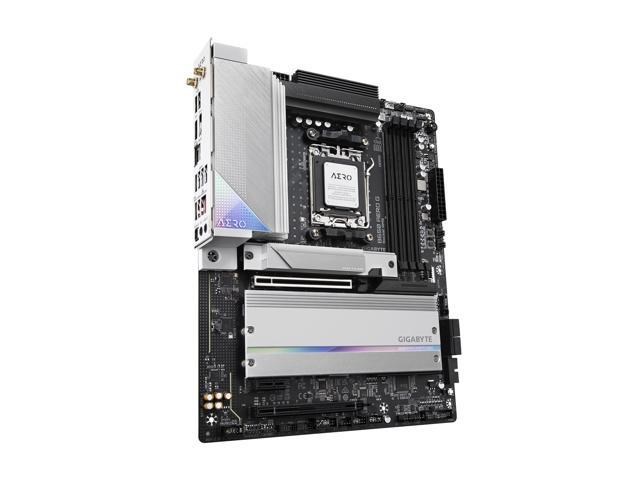

Gigabyte B650 AERO G Motherboard

Gigabyte B650 AERO G AM5 DDR5 ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$199.99		Buy
Last updated 44 minutes ago.
In Stock	In Stock	$199.99 + $2.99 Shipping	+ $2.99	Buy
In Stock	In Stock	$215.49	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (10)

	B450 B450 AORUS ELITE Bundle $82.99
	B450 B450 AORUS PRO WIFI Bundle $131.06
	B550 B550 VISION D-P Bundle $297.56
	B650 B650M DS3H Bundle $202.53
	B450 B450M DS3H Bundle $103.36
	B550 B550 AORUS ELITE Bundle $146.50
	B550 B550I AORUS PRO AX Bundle $188.99
	B450 B450 AORUS M Bundle $89.99
	B550 B550 AORUS PRO AC Bundle $399.99
	B650 B650I AORUS ULTRA Bundle $354.99

AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors
VisionLINK: One USB-C Port for Video, Data Transfer and Charging
Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks: Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: DP IN, HDMI, Front USB-C 20Gbps Support and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications Overview

Model	B650 AERO G B650 AERO G (rev.1.0)
Socket	AM5
Form factor	ATX
Chipset	AMD B650
Supported Memory	DDR5 4400Mhz 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio.
Audio Channels	2/4/5.1/7.1-channel
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x SMA antenna connectors (2T2R) 2 x USB 2.0/1.1 ports 1 x DisplayPort In port 1 x HDMI 2.0 port 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port (DisplayPort) with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x audio jacks 1 x optical S/PDIF Out connector
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	2
PCI-Express x4 Slots	0
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2280 / 25110 - M Key 2280 / 25110 - M Key 2280 / 25110 - M Key
RAM Slots	4
Maximum Supported RAM	128 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
