Kingston KTH-PL426D8/16G -16GB DDR4 2666 MHz ECC Registered RAM

Kingston KTH-PL426D8/16G -16GB DDR4 2666 MHz ECC Registered

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$37.50 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$499.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

Kingston - KTH-PL426D8/16G - Kingston 16GB DDR4 SDRAM Memory Module - 16 GB - DDR4 SDRAM - 2666 MHz - ECC - Registered Color: Black LED Color: N/A

Kingston KTH-PL426D8/16G -16GB DDR4 2666 MHz ECC Registered image 1

Kingston KTH-PL426D8/16G -16GB DDR4 2666 MHz ECC Registered image 2

Kingston KTH-PL426D8/16G -16GB DDR4 2666 MHz ECC Registered image 3

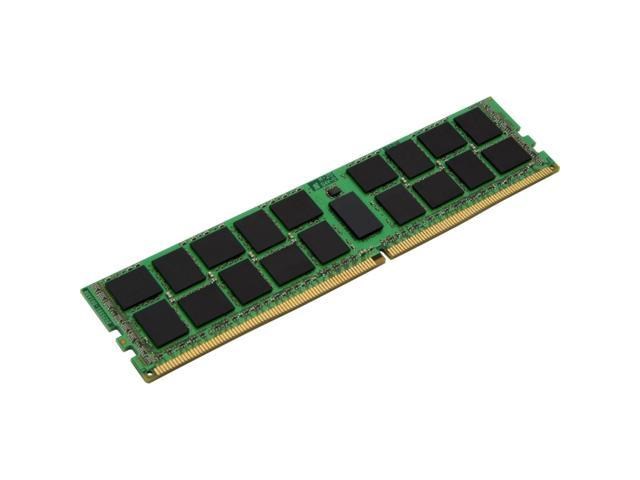

Kingston KTH-PL426D8/16G -16GB DDR4 2666 MHz ECC Registered image 4

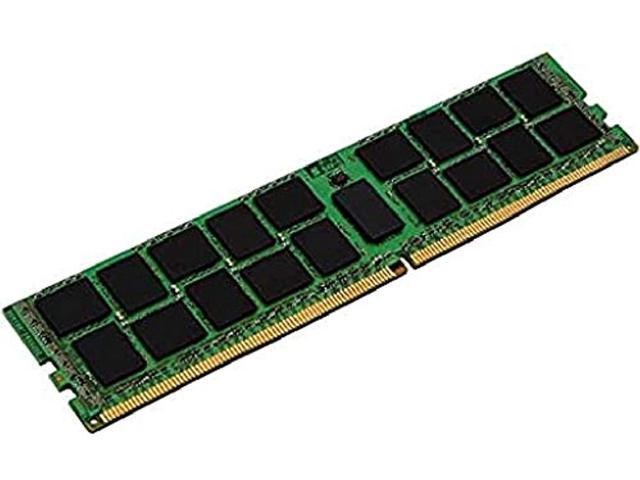

Kingston KTH-PL426D8/16G -16GB DDR4 2666 MHz ECC Registered image 5

Kingston KTH-PL426D8/16G -16GB DDR4 2666 MHz ECC Registered image 6

Specifications Overview

Model	KTH-PL426D8/16G
Type	288-pin DDR4 DIMM
Speed	DDR4-2666 MHz
Size	16GB (1 x 16GB)
CAS Latency	19
First Word Latency	14.25 ns
Voltage	1.2 V
Heat Spreader	No
ECC Support	Yes
Color	Black

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	2133	2400	2666	2800	2933	3000	3200	3300	3333	3400	3466	3600	3666	3733
13	12.19	10.83	9.75	9.29	8.86	8.67	8.13	7.88	7.80	7.65	7.50	7.22	7.09	6.96
14	13.13	11.67	10.50	10.00	9.55	9.33	8.75	8.48	8.40	8.24	8.08	7.78	7.64	7.50
15	14.06	12.50	11.25	10.71	10.23	10.00	9.38	9.09	9.00	8.82	8.66	8.33	8.18	8.04
16	15.00	13.33	12.00	11.43	10.91	10.67	10.00	9.70	9.60	9.41	9.23	8.89	8.73	8.57
17	15.94	14.17	12.75	12.14	11.59	11.33	10.63	10.30	10.20	10.00	9.81	9.44	9.27	9.11
18	16.88	15.00	13.50	12.86	12.27	12.00	11.25	10.91	10.80	10.59	10.39	10.00	9.82	9.64
19	17.82	15.83	14.25	13.57	12.96	12.67	11.88	11.52	11.40	11.18	10.96	10.56	10.37	10.18
20	18.75	16.67	15.00	14.29	13.64	13.33	12.50	12.12	12.00	11.76	11.54	11.11	10.91	10.72
21	19.69	17.50	15.75	15.00	14.32	14.00	13.13	12.73	12.60	12.35	12.12	11.67	11.46	11.25
22	20.63	18.33	16.50	15.71	15.00	14.67	13.75	13.33	13.20	12.94	12.69	12.22	12.00	11.79
23	21.57	19.17	17.25	16.43	15.68	15.33	14.38	13.94	13.80	13.53	13.27	12.78	12.55	12.32
24	22.50	20.00	18.00	17.14	16.37	16.00	15.00	14.55	14.40	14.12	13.85	13.33	13.09	12.86
25	23.44	20.83	18.75	17.86	17.05	16.67	15.63	15.15	15.00	14.71	14.43	13.89	13.64	13.39

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
